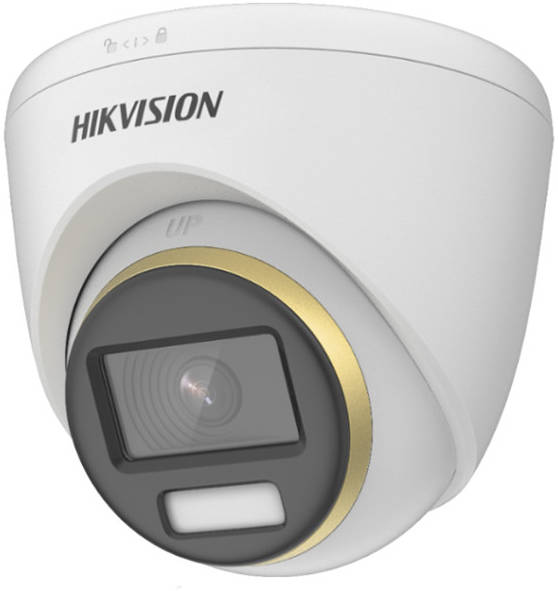

Hikvision 2 MP ColorVu Fixed Turret Camera, 2.8mm Fixed Focal Lens, 24/7 Color Imaging with F1.0 Aperture, 3D DNR, Up to 40m White Light Distance, IP67 Protection, White | DS-2CE72DF3T-F-2.8mm

Specification

Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)

Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens

Field of View
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding,

Smart Light
Lighting Mode White Light

Interface
Video Output Switchable TVI/AHD/CVI/CVBS

General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4.2 W
Protection Level IP67
Material Main body: Metal, Enclosure: Plastic
White Light Range Up to 40 m
