Lenovo ThinkStation P/P3 Ultra/SFF/i7-14700/16GB/512GB SSD/UHD 770/W11P/3R

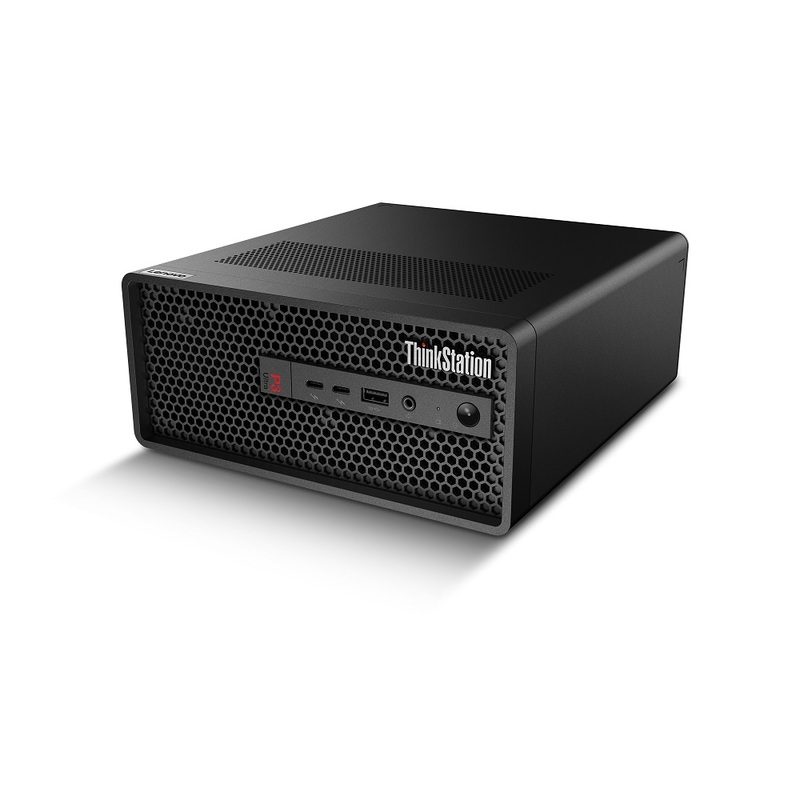

Lenovo ThinkStation P3 Ultra SFF

Design: SFF
Operating system: Windows 11 Pro/English
Processor: Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
Chipset: Intel® W680 Chipset

Memory: 1x 16GB SO-DIMM DDR5-4800 Non-ECC
Number of slots: Four DDR5 SO-DIMM slots with dual-channel capability
Maximum memory size: Up to 192 GB (4x 48 GB DDR5 SO-DIMM)

Hard disk: 1x 512GB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
Storage support: Up to 1x 2.5″ HDD or SSD + 2x M.2 SSD

• 2.5″ HDD up to 1 TB
• 2.5″ SSD up to 7.68 TB
• M.2 SSD up to 4TB each

Optical drive: No
Memory card reader: No

Integrated graphics card: Integrated Intel UHD Graphics 770

Audio: High Definition (HD) Audio, Realtek® ALC897-Q codec

Network: Intel I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE
Wireless communication: No

Keyboard: USB Traditional Keyboard, Black/Slovak
Mouse: USB Calliope Mouse, Black

Security management:

• Discrete TPM 2.0 chip, TCG certified, FIPS 140-2 certified
• Kensington Security Slot™, 3 x 7 mm

Power: 230W 90% Adapter

Front ports:

• 2x Thunderbolt™ 4
• 1x USB-A (USB 10Gbps/USB 3.2 Gen 2)
• 1x headphone/microphone combo jack (3.5mm)

Rear ports:

• 4x USB-A (USB 10Gbps/USB 3.2 Gen 2)
• 3x DisplayPort™ 1.2
• 1x Ethernet (2.5GbE RJ-45)
• 1x Ethernet (GbE RJ-45)

Color: Black
Dimensions: 87 x 223 x 202 mm (WxDxH)
Weight: 3.6 kg
