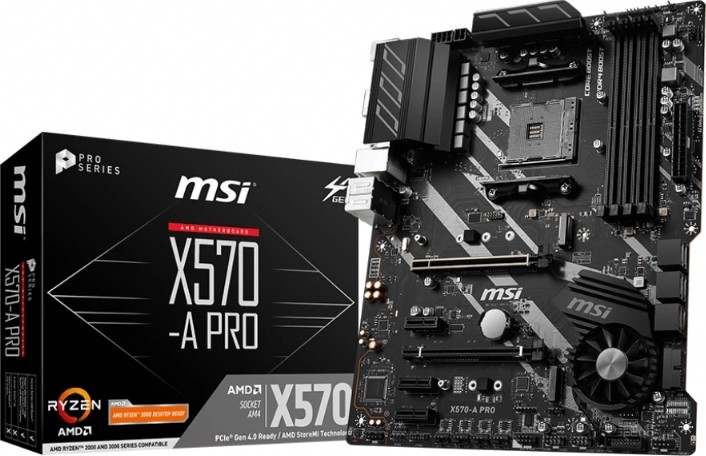

MSI X570-A PRO ATX DDR4 Motherboard, AMD AM4, Max Memory 128GB, X570 Chipset, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 2, HDMI, ATX | 911-7C37-020
Original price was: د.إ 865.72.د.إ 760.13Current price is: د.إ 760.13.
| Brand | MSI |
|---|---|
| Model | X570-A PRO |
11
People watching this product now!
Description
The MSI X570-A PRO AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4400 MHz. For storage, it’s equipped with six SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards, one of which only runs at x4, and three PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated features include Realtek 8111H Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio.
AMD X570 Chipset
The AMD X570 chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.
Cooling
The X570-A PRO utilizes heavy-duty heatsinks on the MOSFETs for reliable processor power delivery and on the chipset to ensure the system stays operational under intense workloads. It’s also equipped with multiple DC/PWM fan headers for users to connect additional cooling solutions. Users can set their cooling preference (Boost/Balance/Silence) as needed within the Dragon Center software or its UEFI BIOS. Moreover, MSI’s M.2 SHIELD FROZR heatsink helps to prevent SSD throttling.
Lightning Gen 4 PCIe
Aside from the increased transfer speeds with PCIe 4.0, MSI’s Lightning Gen 4 PCIe slots are reinforced with steel and built with a server grade PCB for additional durability. Please note that PCIe 4.0 is backwards compatible with PCIe 3.0.
CPU
A combination of an optimized circuit layout and MSI’s CoreBoost CPU power delivery system ensures performance and stability for high-end processors. Additional features include load-line calibration, overvoltage protection, a digital power deign, and double power connectors.
