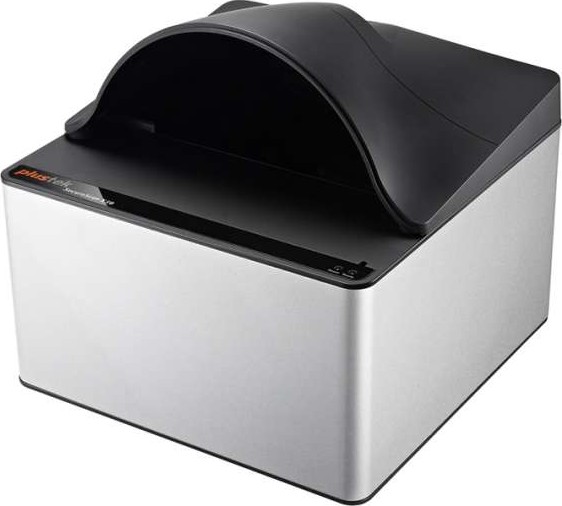

SecureScan X50

The SecureScan X50 utilizes an image sensor with Visible illumination, for quick image capturing, OCR text reading, and visual security features authentication, of ID cards, such as drivers licenses, health insurance cards, and other identification documents.



A.	Completely compliant with ICAO Doc 9303 standard
	Supporting TD1/TD2/TD3/TDV document size scanning.

B.	Capable of reading Machine Readable Zone, and Visual Zone data
	To capture and verify relevant data of all international passports, as well as standard size plastic ID cards, drivers licenses, health insurance cards and other small size documents.

C.	Auto-Detect of document type, document size, and 2 seconds Quick-Scan with OCR
	To reduce check-in time, increase traffic flow and accurate customer profile data. It only takes approximately 2 seconds from scan to show (including photo on screen).

D.	Easy to integrate Identity Management Systems
	Plustek offers SDKs to system integrators upgrading existing or developing new identity management system.

E.	Low power design with USB power-in

---

Application:

Image Sensor

CMOS

Light Source

White LED

Optical Resolution

5 Megapixels

Focus

Fixed

Scan Modes

Color: 24-bit Input; 24-bit Output

Scanning Speed

Approx. 1 sec (Color Mode, Full Page passport image capture)

Scanning Area (W x L)

Maximum: 127 x 95 mm (5″ x 3.74″)

Acceptable Paper Sizes (W x L)

Maximum: 125 x 88 mm (4.92″ x 3.46″)

Action Button

Dual Auto Detect Sensors

Power Supply

USB Power: 5V / 0.5A

Interface

USB 2.0

Net Weight

1.7 Kgs (3.78 Lbs)

Dimensions (W x D x H)

Without Cover: 200 x 200 x 119 mm (7.87″ x 7.87″ x 4.69″) With Cover: 200 x 200 x 190 mm (7.87″ x 7.87″ x 7.48″)

OS	Windows 7(SP1) / 8 / 10

Hardware Requirements

Pentium® IV 2.4 GHz processor DVD-ROM Drive One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 1GB free HDD space (2GB or larger recommended)
