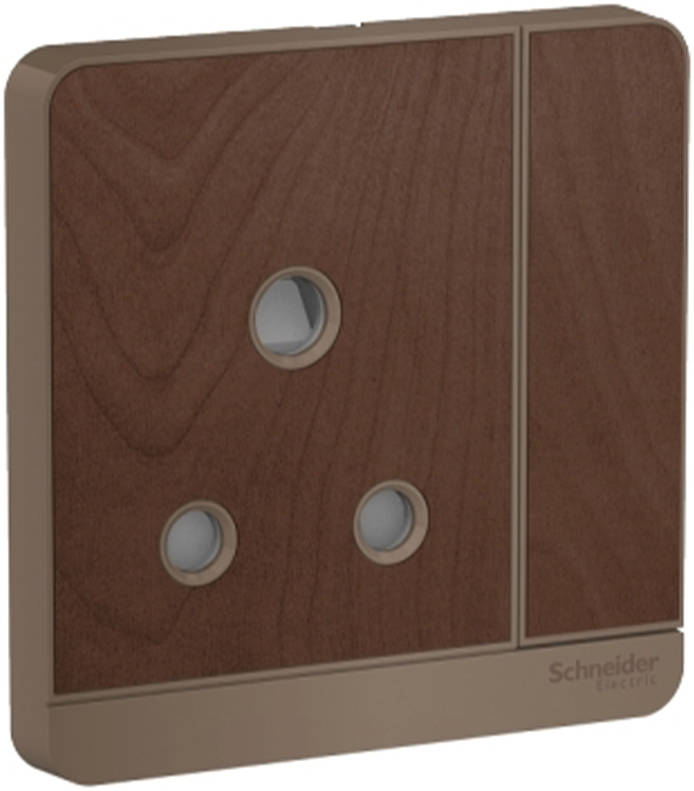

Schneider Electric AvatarOn switched socket E8315_15_WD_G12 is a complete product in color wood and with 1 gang. This switch is 3P. And this device is British BS 546 standard. And its rated current is 15A. Its matching mounting box can be recessed into the surface of the wall with flush type. The fixing mode of this device is screw. The IP rating of this device is IP20. What’s more, it well satisfied the standard of BS 546, MS 1577, SS 472. The switched socket is made of polycarbonate, making it as resistant as possible. AvatarOn offers six fashionable, classic appearances, letting your home’s details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
| • Product or component type | – Switched socket |
|---|---|
| • Device application | – Power supply |
| • Device presentation | – Complete product |
| • outlet poles configuration | – 3P with shutter |
| • colour tint | – Wood |
| • Type of packing | – – Flow-pack |
| • rated current | – 15 A socket-outlet |
|---|---|
| • [Ue] rated operational voltage | – 250 V AC 50/60 Hz |
| • Socket number | – 1 |
| • Outlet standard description | – With earthing contact |
| • Outlet standard | – British BS 546 |
| • Number of gangs | – 1 gang |
| • Service life in cycles | – 20000 cycles |
| • Electrical durability | – 5000 cycles |
| • Connections – terminals | – Screw terminal |
| • material | – Polycarbonate: grid plate – Polycarbonate: surround |
| • Surface finish | – Glossy |
| • surface treatment | – Painted cover plate |
| • Device mounting | – Surface |
| • Fixing mode | – Screw |
| • Height | – 86 mm |
| • Width | – 86 mm |
| • Depth | – 32.6 mm |
| • IP degree of protection | – IP20 |
|---|---|
| • Ambient air temperature for operation | -5…45 °C |
| • Ambient air temperature for storage | -5…60 °C |
| • Standards | – SS 472 – BS 546 – MS 1577 |
| • Product certifications | – SIRIM |
