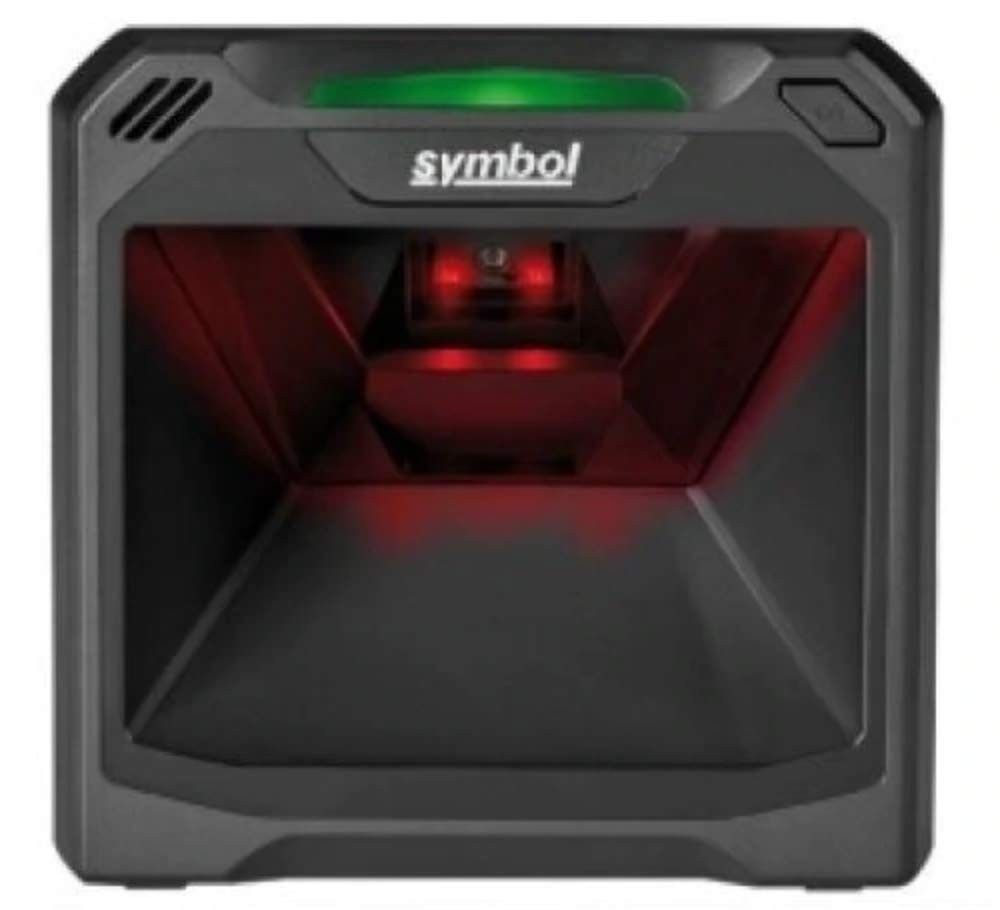

When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance, ease of deployment and total cost of ownership. No matter what bar codes appear at your POS, the DS7708 can scan them all ? 1D, 2D, printed and electronic ? as fast as your cashiers can slide items past the scan window. With its compact design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment. Smart auto-host detect cables automatically determine which interface is attached, eliminating the need to scan numerous configuration barcodes. Over 90 international keyboards are supported, enabling easy setup, all around the world.
Scan virtually any bar code, in any condition, on any medium
First-time every time capture of 1D and 2D bar codes displayed on mobile devices or printed on paper labels — even if they are damaged, poorly printed or dirty.
PRZM Intelligent Imaging technology for next-generation scanning performance
Resets the bar for 2D imaging by improving decode performance and snappiness, dramatically improving the user experience, user productivity, throughput and customer wait times.
Next generation swipe speeds up to 100 in./2.5 m per second
Enables users to capture bar codes as fast as they can pass items in front of the scan window.
Specifications
Complimentary Management Tools
PRODUCT SPEC SHEET
Symbol DS7708
Physical charac teris tics
Dimensions Scanner only:
5.63 in. H x 5.86 in. W x 3.81 in. D
14.3 cm H x 14.9 cm W x 9.7 cm D
Scanner with Table Mount Kit:
6.06 in. H x 5.93 in. W x 3.85 in. D
15.4 cm H x 15.1 cm W x 9.8 cm D
Weight 17.6 oz. / 500 g
Voltage and Current Without auxiliary scanner:
Standby: 5 VDC +/-10% @ 125ma avg.
Operating: 5 VDC +/-10% @ 480ma avg.
With auxiliary scanner:
Standby: 12 VDC +/-10% @ 100ma avg.
Operating: 12 VDC +/-10% @ 400ma avg.
Color Midnight Black
Supported Host Interfaces USB, RS-232, Keyboard Wedge, TGCS (IBM)
46XX over RS485
Keyboard Support Supports over 90 international keyboards
Auxiliary Scanner Interface USB
Electronic Article
Surveillance Compatible with Checkpoint EAS deactivation systems
performance charac teris tics
Swipe Speed Up to 100 in./sec. (254 cm/sec.)
Light Source Two deep red LEDs (660nm)
Imager Field of View 48.0° x 36.7° (bar-code reading)
48.0° x 33.7° (image capture)
Image Sensor 1280 x 960 (bar-code reading)
1280 x 880 (image capture)
Minimum Print Contrast 25% minimum reflective difference
Roll / Pitch / Yaw (Skew) 360˚, ±70˚, ±70˚ typical
user environment
Operating Temperature 32Ëš to 104Ëš F / 0Ëš to 40Ëš C
Storage Temperature -40Ëš to 158Ëš F / -40Ëš to 70Ëš C
Humidity 5% to 85% RH, non-condensing
Environmental Sealing IP52
Electrostatic Discharge
(ESD)
ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV
Indirect (without auxiliary scanner)
Ambient Light Range From darkness (0 fcd) to 450 fcd artificial light and
10,000 fcd direct sunlight
