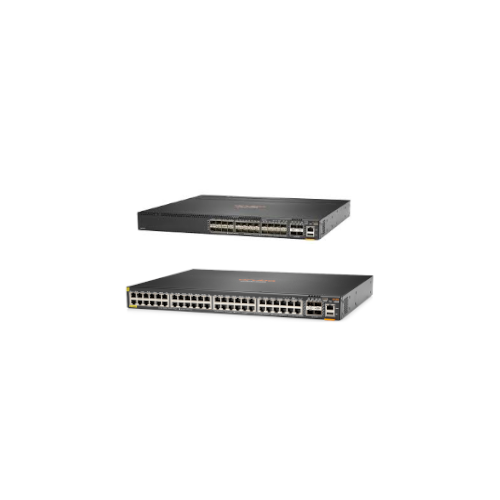

Aruba JL663A CX 6300 Switch Series

Overview Aruba JL663A CX 6300 Switch Series and DATA SHEET

• The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
• Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer
• A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks1 and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.
• Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate

Key Features JL663A

• Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
• High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth
• Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE and SFP+ models
• Power-to-port switch bundle with back-to-front airflow ideal for data center 1GbE ToR and OOBM deployments
• Built-in high speed 10GbE/25GbE/50GbE uplinks
• Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
• Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
• Aruba NetEdit support for automated configuration and verification
• Aruba Dynamic Segmentation enables secure and simple access for users and IoT

Benefits for JL663A

High performance stackable switches – Prepare your network with a switch that is ready to handle it all

JL663A Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch

• 48x ports 10/100/1000 BaseT ports 4x 1/10/25/50G1SFP ports 1x USB-C Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App
• 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately) Supports JL085A PSU
• Switch has two fan tray slots and comes with one fan tray installed. Min 1 fan tray required. Optional second fan tray ordered separately. Fan trays are field replaceable and hot-swappable.  Each fan tray contains two fans.
• Quad Core ARM Cortex™ A72 @ 1.8GHz
• 8 GB DDR4 32 GB eMMC
• 8 MB Packet Buffer Memory
• Up to 10 kms with long range transceivers
