product description

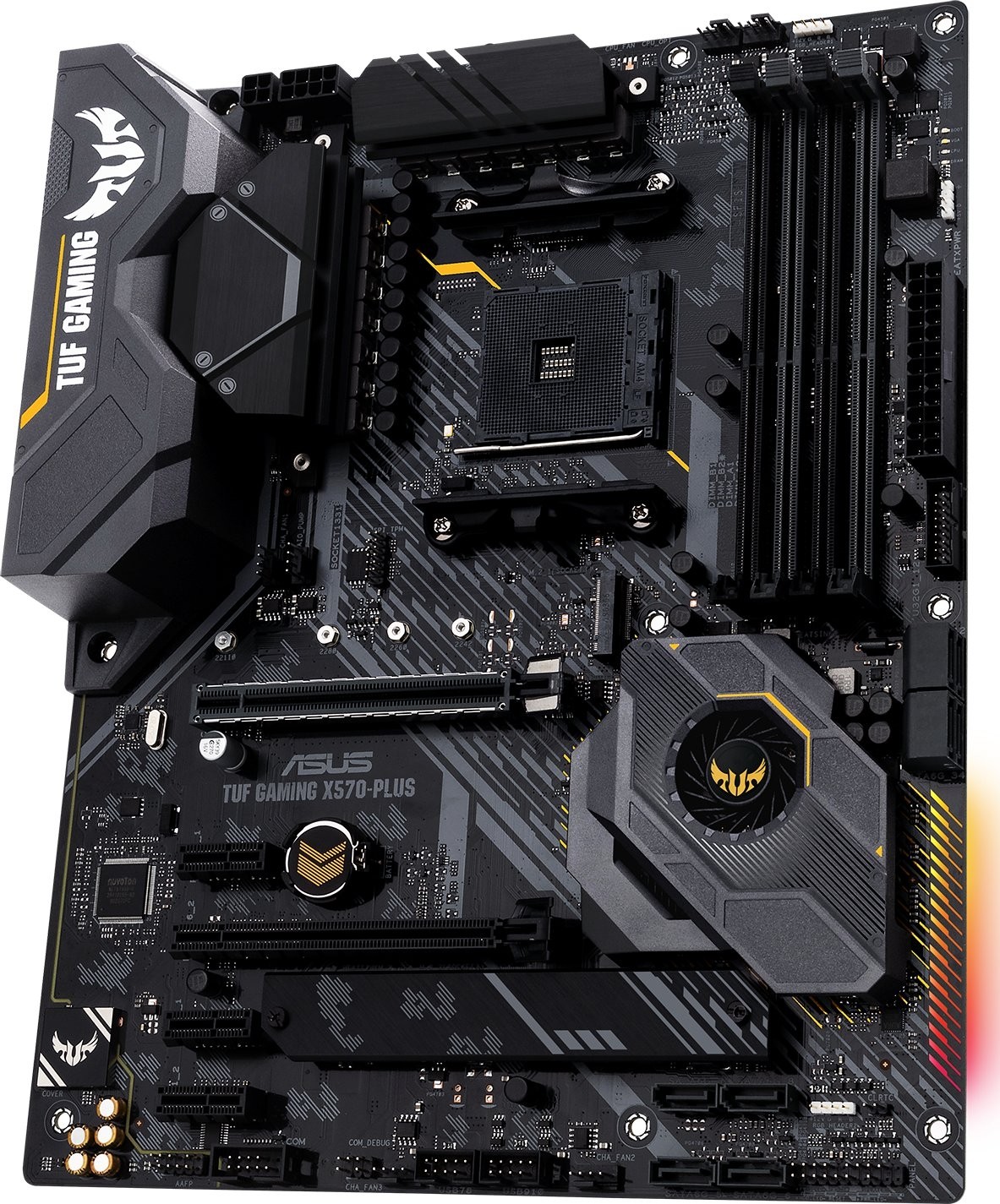

ASUS TUF X570-PLUS GAMING
TUF X570-PLUS GAMING distills the basic elements of the latest AMD platform and combines them with gaming features and proven durability. Built from military-level components , featuring improved power solutions and a range of cooling options, this board delivers solid performance with unmatched gaming stability .
Highlights of the ASUS TUF X570-PLUS GAMING
- ASUS proven quality for years
- AMD X570 chipset
- Processor Support 3./2. generation Ryzen and 2./1. generation Ryzen with Vega Graphics
- Generation 2 addressable RGB LED header
- AMD Crossfire support
Aura Sync
ASUS Aura Sync technology makes the motherboard a control node in terms of lighting. It makes it easy to synchronize incredible light effects between compatible components, including RGB LED strips, graphics cards, keyboards, and even mice. Change all LEDs at once or use dynamic modes to let lighting effects flow across all synced devices. In addition, the 2nd generation addressable header allows you to control individual LEDs when a compatible device is connected.
Created to be quieter and cooler
Play quieter and cooler with advanced fan control and water pump for ultimate uninterrupted play. With thermal sensors and 4-pin / 3-pin PWM / DC detection installed , Fan Xpert 4 delivers a balance between cooling and low fan noise so you can enjoy all the power you need without the noise.
Key properties
It is a motherboard using liquid cooling with AMD X570 chipset . It offers AMD AM4 socket with AMD Ryzen 3/2 support. generation and 2./1. generation with Vega graphics . The board offers 4 DIMM dual-channel DDR4 slots with up to 128 GB capacity and support for up to 3200 MHz and up to 4400 MHz OC. Interface board offers up to 4x USB 2.0 (4x on board), 6x USB 3.2 Gen 1 (4x on back panel, 2x on board), 3x USB 3.2 Gen 2(2x Type-A and Type 1-C on the rear panel), 1x PS / 2, 1x Glan 1x DisplayPort, HDMI 1x, 5x audio jack and expansion slots 1x PCI-E 4.0 x16 (x16 Stamp the third gene; Stamp the 2 . gen PCI-E 3.0 x16; Ryzen Vega gene 1/2 PCI-E 3.0 x8), 1x PCI-E 4.0 x16 (x4) and 3x PCI-E 4.0 x1 . For hard drives, the board has 8x SATA 6Gbps and 2x M.2 connectors. Supports AMD Crossfire. Board is ATXformat .
ASUS TUF X570-PLUS GAMING
Specifications
Socket and chipset
Socket
AMD AM4
Chipset
AMD X570
Format & functions
Basic functions
Integrated network card, Integrated sound card, PCI Express 3.0, M.2 , Serial ATA III, UEFI BIOS, RGB backlight
Motherboard form factor
ATX
Connectors
External
HDMI, Jack, Optical out, PS/2, USB 3.2 Gen 1 (USB 3.0), USB 3.2 Gen 2, USB-C, RJ-45 (LAN)
Internal
USB 2.0 bracket, USB 3.0 (3.1 gen1) bracket, Serial ATA III, COM bracket, M2 Socket
PCI express x16
2×
PCI express x1
3×
M.2 slots
2piece(s)
USB 2.0
2×
USB 3.0 (3.1 gen1)
1×
Serial ATA III
8×
Memory
Design
DIMM
Memory type
DDR4
Number of RAM slots
4 ×
Connection Mode
Dual-channel
Max. frequency (OC)
4,400 MHz
Advanced parameters
Sound card type
Realtek® ALC S1200A
Number of sound card channels
8
Series
Series
Asus TUF Gaming
