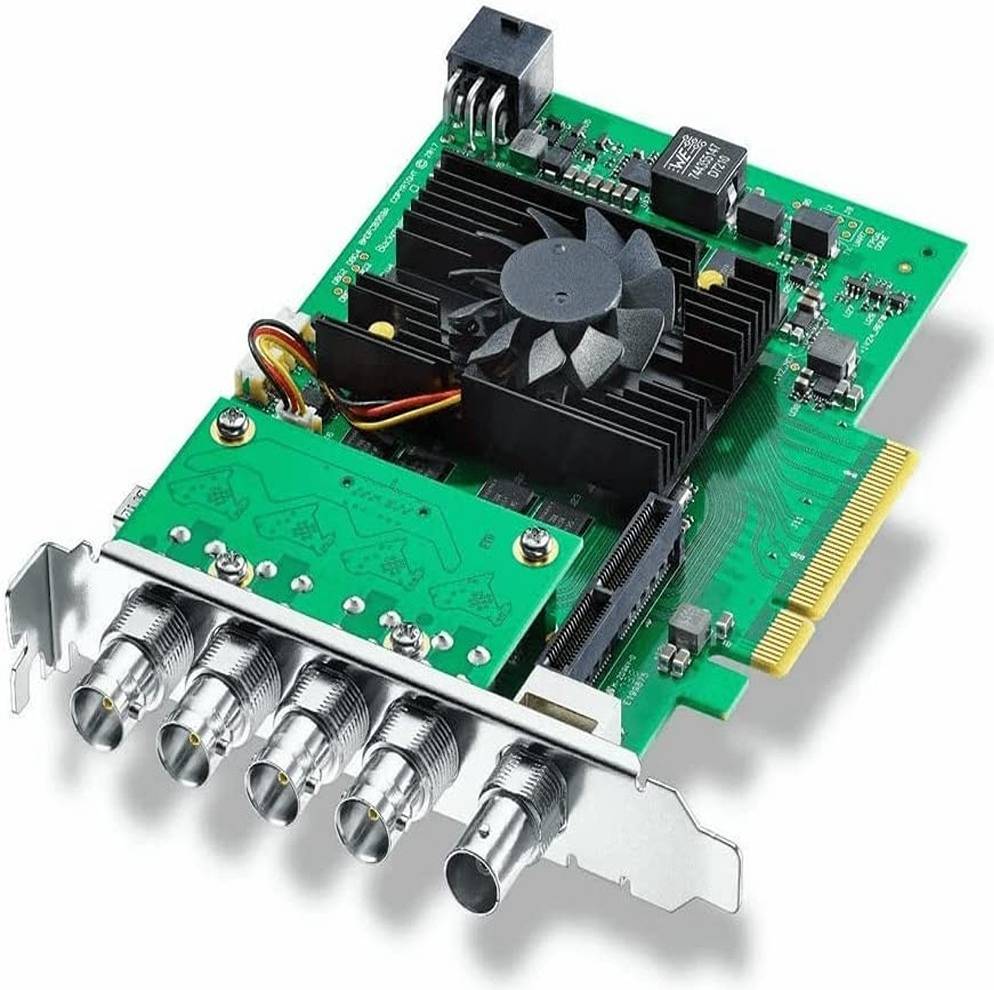

Blackmagic Design Decklink 8K Pro Cinema Capture Card, 8K & DCI 8K Up to 60 fps, 8-Lane PCIe Gen3 I/O Card, Multi-Rate 12G-SDI, Single & Dual Link 4:4:4/4:2:2 Signals, Win /Mac| BM-BDLKHCPRO8K12G

DeckLink 8K Pro works in all SD, HD, Ultra HD, 4K and 8K frame sizes making it the ultimate digital cinema capture card! The four 12G-SDI connections are bi-directional for quad link 8K capture or playback. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback. DeckLink 8K Pro supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows!

Features

• 8-Lane PCIe Gen3 I/O Card
• Multi-Rate 12G-SDI
• Supports 8K and DCI 8K up to 60 fps
• Single & Dual Link 4:4:4/4:2:2 Signals
• Compatible with Mac, Windows, and Linux

Connections

SDI Video Inputs

4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Video Outputs

4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Audio Inputs

16 Channels embedded in SD/HD/2K.

64 Channels embedded in 4K/8K.











Flexible Format Support

The card offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 12-bit 4:4:4 uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux-based workstations.

Processing

Colorspace Conversion

Hardware based real time on output.

3D Processing

Left eye/right eye dual stream capture and playback.

Real Time Effects

DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.



Software Applications

DaVinci Resolve

Fusion

Final Cut Pro X

Adobe Premiere Pro CC

Avid Media Composer

Adobe After Effects CC

Avid Pro Tools

Steinberg Cubase

Autodesk Smoke

Adobe Photoshop CC
