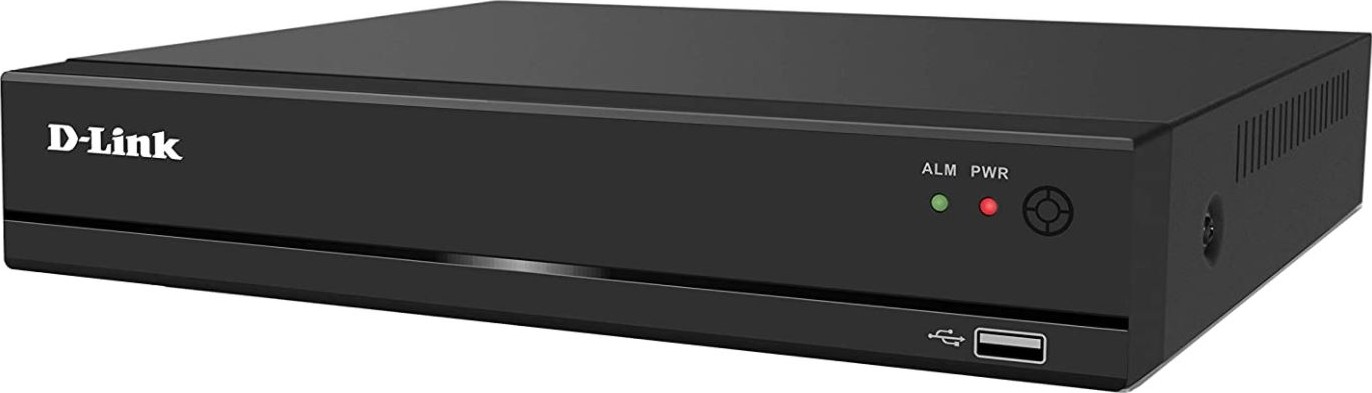

D-Link DVR-F2116-M1 16 Channel Digital Video Recorder, 1SATA, Supports AHD/TVI/CVI/CVBS /IP Cameras, Supports 3G/4G Wi-Fi, | DVR-F2116-M1
د.إ 375.64
| Brand | D-Link |
|---|---|
| Model | DVR-F2116-M1 |
17
People watching this product now!
Description
16 CH, 1SATA Supports AHD/TVI/CVI/CVBS /IP Cameras Supports AHD/TVI/CVI upto 2MP Supports H.264+/H.264 Supports Smart Playback & Analytics Supports 3G/4G Wi-Fi Google drive & Dropbox Cloud Storage
Features
16 CH, 1SATA
Supports AHD/TVI/CVI/CVBS /IP Cameras
Supports AHD/TVI/CVI upto 2MP
Supports H.264+/H.264
Supports Smart Playback & Analytics
Supports 3G/4G Wi-Fi
Google drive & Dropbox Cloud Storage
Specifications
| VIDEO & AUDIO INPUT | |
| Video Input | 16ch BNC interface (1.0Vp-p, 75 Ω) |
| TVI / CVI /AHD | 1080P, 720P |
| IPC | Up to 16ch 2MP |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two way Talk | 1-ch, multiplex with Audio Input (RCA) ) |
| VIDEO & AUDIO OUTPUT | |
| HDMI | 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| VGA | 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/ 60Hz,1024×768/60Hz |
| CVBS | Supported |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| RECORDING | |
| Compression | H.264/H.264+ |
| Resolution | 16ch 1080P Lite@12fps; 960H1/D1/CIF real time |
| Frame Rate(fps) | 1fps-12fps |
| Video Bit Rate | 11Kbps-2707Kbps |
| Record Mode | Manual, Schedule, Alarm |
| Audio Compression | G.711a |
| Audio Bit Rate | 64Kbps |
| PLAYBACK & BACKUP | |
| Playback Mode | Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback |
| Playback Rate | 16ch Playback |
| Backup Mode | USB Device/Network |
| SMART FUNCTION | |
| Smart Detection for Analog | 2CH line crossing detection, area Intrusion |
| Smart Playback for Analog | Line crossing detection, Area Intrusion, Motion detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| NETWORK | |
| Ethernet | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Network Function | HTTPs,HTTP,TCP/IP,IPv4,UPnP,Onvif2.6,RTSP,RTCP,UDP,SMTP,SNMP,Multicast,IGMP,NTP,DHCP,DNS,DDNS, FTP, P2P |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| HARD DISK | |
| SATA | 1 HDD |
| Capacity | Up to 8TB capacity for each HDD |
| EXTERNAL INTERFACE | |
| Serial Interface | RS-485 |
| USB Interface | 2 × USB |
| GENERAL | |
| Power Supply | DC12V, 2A |
| Power Consumption | ≤10W (without HDD) |
| Working Environment | -10°C~+55°C / 10%~90%RH |
| Dimension (W×D×H) | 250 x 230 x 45mm |
| Weight (without HDD) | 1.5kg |
| Certification | CE,BIS |
| SYSTEM MANAGEMENT | |
| Mobile Software | D-LINK SMART CCTV App |
| Desktop Software | DSVS (D-LINK Smart Video Surveillance) |
