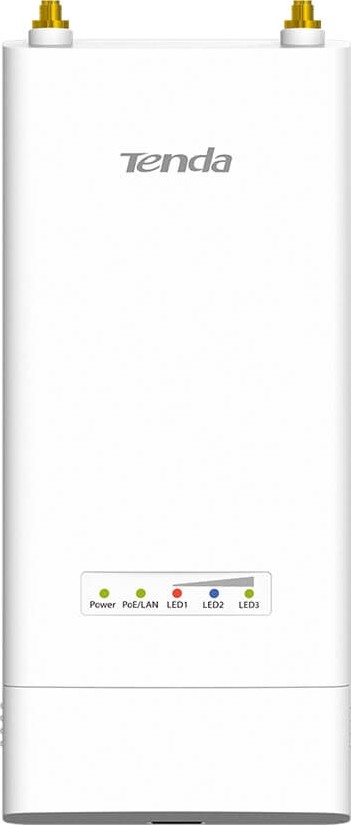

Tenda B6 Outdoor 5GHz Base Station WiFi Point to Point Link
The Tenda B6 Outdoor 5GHz WiFi 4 Point-To-Multi-Point PtMP Link Base Station is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance. The two (2) RP-SMA antennas connectors enable it to pair with dish antenna or sector antenna (sold separately) to establish PtP backhaul connection and P2MP link. It adopts TD-MAX – Tenda’s TDMA (Time Division Multiple Access) proprietary protocol – to improve performance and capacity. The auto-bridging technology makes it easy to setup for both business and home users.
Key Features
- 5GHz 11n (WiFi 4) 300Mbps PtP/PtMP link.
- Two (2) RP-SMA antennna connectors.
- IP65 waterproof enclosure.
- Lightning protection (6000V).
- AP, Station, WISP operating modes supported.
- Up to 60 metres of flexible deployment with included PoE injector.
TD-MAX – Tenda’s TDMA Proprietary Protocol
TD-MAX is Tenda’s TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor enviroments, the CPE uses highly directional antennas to connect to the basestation from distances that can span several kilometres. The CPEs can’t sense each other; they become “hidden nodes” and cannot coordinate access to the wireless channel. As a result, the basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. TD-MAX coordinates all the data transmissions and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.
Super Channel – Extended Frequencies
The B6 uses the Qualcomm AR9344 chipset and special software mechanism optimisation for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicenced 5GHz band and into a clean spectrum.
10/20/30/40MHz Channel Bandwidth
The B6 applies special optimisation in software for register parameter to deliver 10/20/30/40MHz channel bandwidth options. It provides extra 10MHz and 30MHz channel bandwidth options to be used depending on the application scenario. When you choose the 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose the 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better.
The Tenda B6 Outdoor 5GHz WiFi 4 Point-To-Multi-Point PtMP Link Base Station is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance. The two (2) RP-SMA antennas connectors enable it to pair with dish antenna or sector antenna (sold separately) to establish PtP backhaul connection and P2MP link. It adopts TD-MAX – Tenda’s TDMA (Time Division Multiple Access) proprietary protocol – to improve performance and capacity. The auto-bridging technology makes it easy to setup for both business and home users.
Key Features
- 5GHz 11n (WiFi 4) 300Mbps PtP/PtMP link.
- Two (2) RP-SMA antennna connectors.
- IP65 waterproof enclosure.
- Lightning protection (6000V).
- AP, Station, WISP operating modes supported.
- Up to 60 metres of flexible deployment with included PoE injector.
TD-MAX – Tenda’s TDMA Proprietary Protocol
TD-MAX is Tenda’s TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor enviroments, the CPE uses highly directional antennas to connect to the basestation from distances that can span several kilometres. The CPEs can’t sense each other; they become “hidden nodes” and cannot coordinate access to the wireless channel. As a result, the basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. TD-MAX coordinates all the data transmissions and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.
Super Channel – Extended Frequencies
The B6 uses the Qualcomm AR9344 chipset and special software mechanism optimisation for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicenced 5GHz band and into a clean spectrum.
10/20/30/40MHz Channel Bandwidth
The B6 applies special optimisation in software for register parameter to deliver 10/20/30/40MHz channel bandwidth options. It provides extra 10MHz and 30MHz channel bandwidth options to be used depending on the application scenario. When you choose the 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose the 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better.
