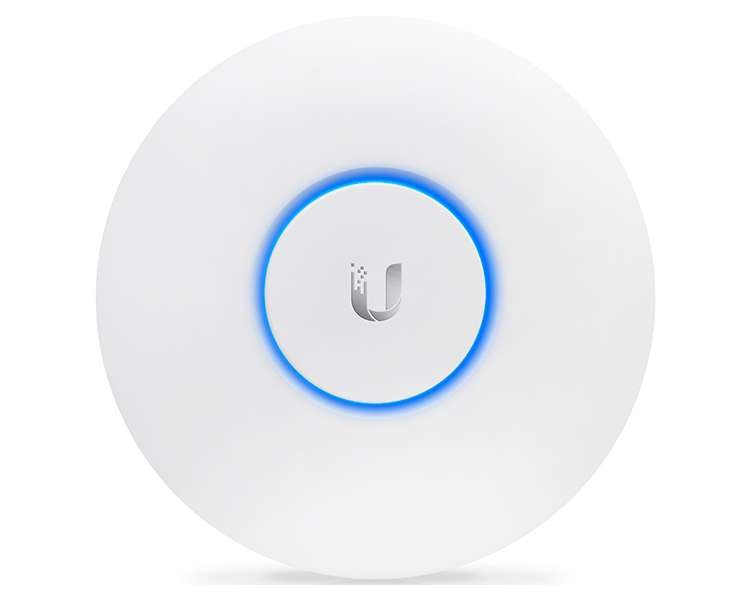

Ubiquiti Networks UAP-AC-SHD 802.11ac Wave 2 Access Point with Dedicated Security Radio | UAP-AC-SHD
د.إ 1,597.58
| Brand | UBIQUITI |
|---|---|
| Model | UAP-AC-SHD |
11
People watching this product now!
Description
- Dedicated dual‑band radio constantly monitors and protects against threats.
- airTime provides real‑time visibility into channel utilization at packet level
- airView provides real‑time visibility into RF environment across all available channels
Real-time visibility into your RF spectrum
Real-time analysis of all of your available RF channels – with no performance impact or client disruption
Real‑time visibility into everything affecting your Wi‑Fi performance
Real-time analysis of all SSIDs, stations, data types, and interference – with no performance impact or client disruption
High‑Density Applications Powered by MU‑MIMO Technology
802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.
Radio Hardware Acceleration
Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi‑user throughput and reduced latency
CPU Hardware Acceleration
Dedicated hardware offload for QoS, guest control, and client management
Optimized for MU‑MIMO
Antenna system optimized for 802.11ac Wave 2 MU‑MIMO beamforming
Beamforming
Data sent and received using multiple antennas to increase throughput and range
Realtime Spectral Analysis
Real‑time collection and analysis of full‑band 5 GHz and 2.4 GHz interference
Hardware WIPS
Dedicated Wireless Intrusion Prevention System (WIPS) security radio and processor for ultimate security, protection, and network awareness
Advanced Features in UniFi Controller
UniFi is the premiere Software Defined Networking (SDN) solution with seamless integration of high‑performance switching, gateways, and more.
| Dimensions | 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″) |
| Weight With Mounting Kits | 700 g (1.54 lb) 830 g (1.83 lb) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Method | 802.3at PoE+ |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | UniFi Switch (PoE) |
| Power Save | Supported |
| Maximum Power Consumption | 20W |
| Radios | 2.4 GHz, 5 GHz, Security |
| TX Power | |
| 2.4 GHz | 6-25 dBm |
| 5 GHz | 6-25 dBm |
| Antennas | |
| 2.4 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
| 5 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| 802.11w (PMF) | |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1000+ |
| Supported Data Rates (Mbps | |
| Standard | Data Rates |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
