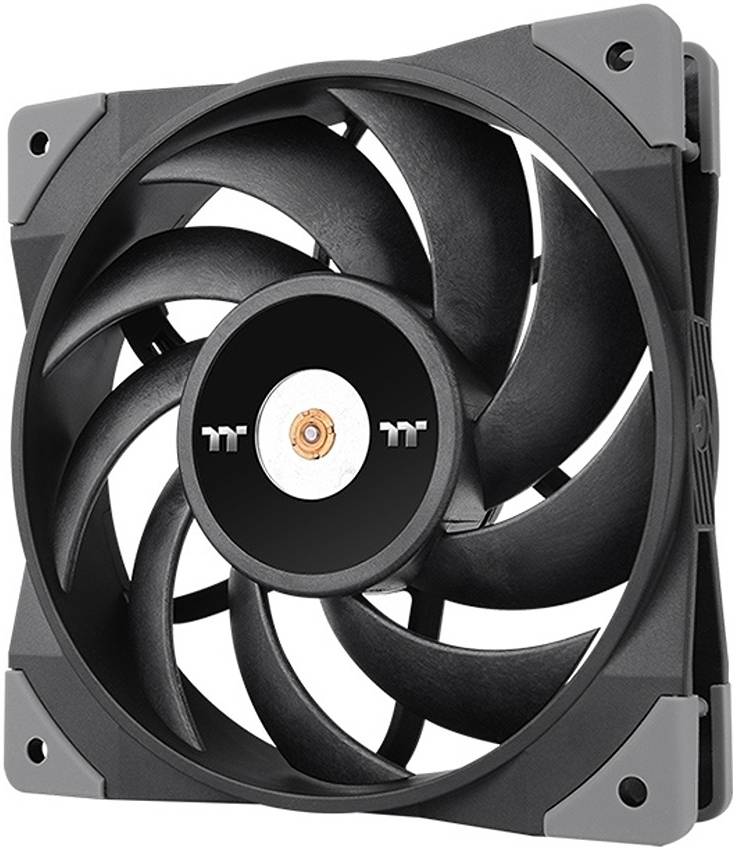

Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs.
- Unparalleled Cooling Performance: The TOUGHFAN is a PWM controlled fan which is designed to perform at a maximum operating speed of up to 2000 RPM allowing unparalleled cooling performance.
- Exceptional Blade Design: Featuring extreme tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.
- Metal-Reinforced Motor Hub: The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.
- The 2nd Generation Hydraulic Bearing: The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation.
| P/N | CL-F082-PL12BL-A |
|---|---|
| FAN DIMENSION | 120 x 120 x 25 mm |
| FAN STARTED VOLTAGE | 9.0 V |
| FAN RATED VOLTAGE | 12 V |
| RATED CURRENT | 0.12 A (Fan x1) |
| POWER INPUT | 1.44 W (Fan x1) |
| FAN SPEED | 500 ~ 2000 R.P.M With L.N.C PWM 500~1500 R.P.M |
| MAX. STATIC PRESSURE | 2. 41mm-H2O |
| MAX AIR FLOW | 58.35 CFM |
| No Fans | 1 |
| NOISE LEVEL | 22.3 db-a (without L.N.C) 19.2 db-a (with L.N.C) |
| BEARING TYPE | Hydraulic Bearing Gen. 2 |
| LIFE EXPECTATION | 40,000 hrs, 25℃ |
| CONNECTOR | 4 PIN PWM |
| WEIGHT | 212.5 g (Fan*1) |
