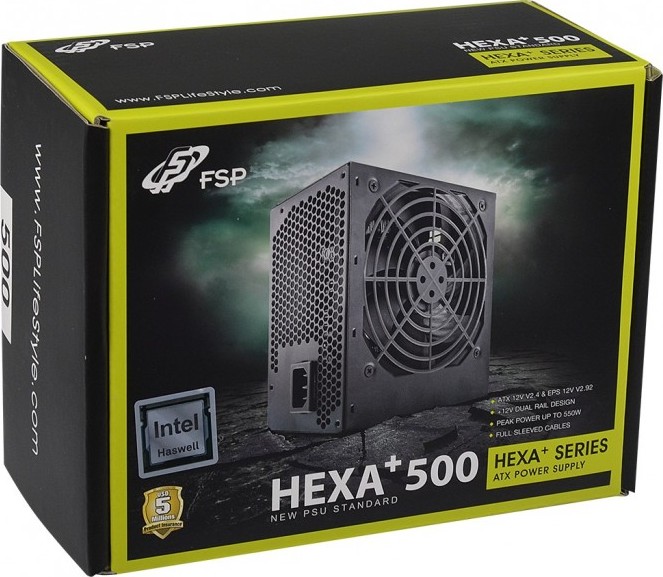

HEXA series but with upgrade high-quality and much value-priced.
Specifications :
120mm long lasting fan provides superior cooling with minimal noise.
HEXA+ Series also provides PCI-Express graphic card connector(s) and 4 units above SATA cable to take
care of your need for storage.
Built with quality components and dual +12V outputs, HEXA+ Series ensures stabilityand reliability for your system.
Besides, HEXA+ Series also protects your PC by providing complete protection
(OCP, OVP, SCP) and multiple safety approvals.
Improvement :
Compared with HEXA series, HEXA+ series is with longer length of 24 Pin also 4+4 Pin cable,
it’s much convenient for you to assemble.
Advantages :
HEXA+ Series dose the job efficiently and reliably, making it a stable power supply unit built to satisfy
the demands on users looking for entry-level power or the budget minded system builder.
Recommand Product
AC/DC
| Model No. | H2-500 | |||||
| AC Input | 200-240Vac ~ 4A 50Hz | |||||
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb |
| Max Output Current | 24A | 24A | 18A | 18A | 0.5A | 2.5A |
| Max Combined Power | 123W | 432W | 18.5W | |||
| Total Power | 500W | |||||
Specifications
| Model | H2-500 |
| Rated Output Power | 500W |
| Form Factor | ATX 12V V2.4 & EPS 12V V2.92 |
| Input Voltage | 200-240Vac |
| Input Current | 4A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficiency | Meet 80% @ Typical Load |
| Fan Type | 120mm Quiet Fan |
| Dimensions(Lx W x H) | 150 x 140 x 86 mm |
| Operation Temp. | 0~40°C / 32°F~104°F |
| Protection | OVP/OCP/SCP |
| Safety Approval | CE/CB/TUV/C-tick |
