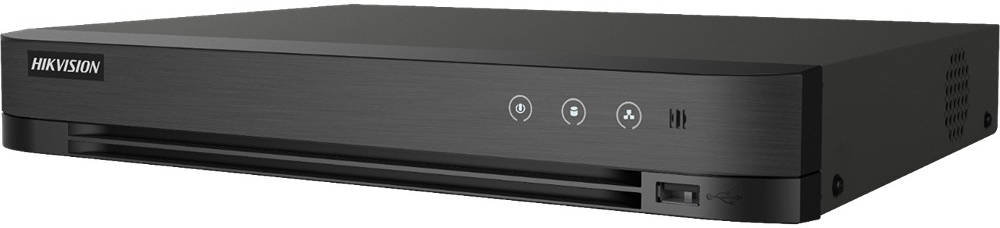

- 8 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected.
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
- Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 10-ch)
Up to 6 MP resolution
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback8-ch
- HDTVI Input
4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S.
- AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Compression and Recording
l H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
l Full channel recording at up to 1080p resolution
Storage and Playback
l Smart search for efficient playback
Smart Function
l Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
l Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
l Compatible with major Wi-Fi dongle products in the market
l Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
l Output bandwidth limit configurable
